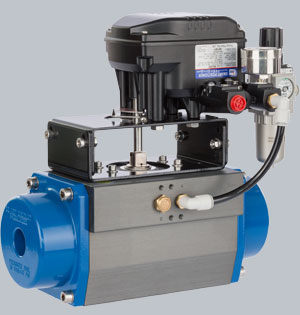

90° Pneumatic Quarter-Turn Actuators SPA-R

Pneumatic Quarter Turn Actuators SPA-R are ideal for trouble-free, modular automation of process valves such as butterfly, plug and ball valves or as a control unit on reactor sampling systems.

Main features

• Robust Rack & Pinion construction

• For dry or lubricated, filtered compressed air

• Plant-side lubricated for 1'000'000 cycles

• Hard anodized / epoxy coated body for excellent corrosion protection

• Multiple bolt circles according to ISO 5211-DIN 3337 for direct automation

• Top drillings according to NAMUR VDIVDE-3845 for accessory mounting

• Visual position indicator

• Pre-compressed spring cartridges for safe dismantling

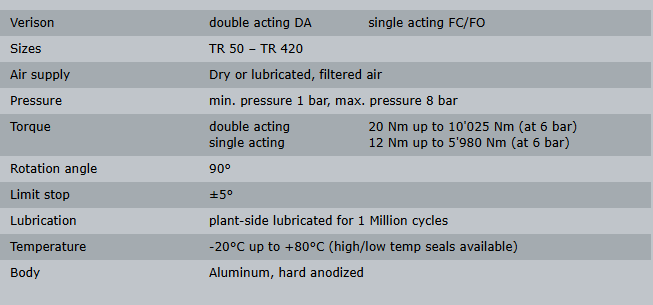

Technical data

Options

Body	Stainless steel 316 polished
Accessories	Solenoid valves, limit switches, P/P and I/P positioners, emergency manual override gearbox, mufflers, throttling valves

Detailed specification/options acc. to the data sheet.
