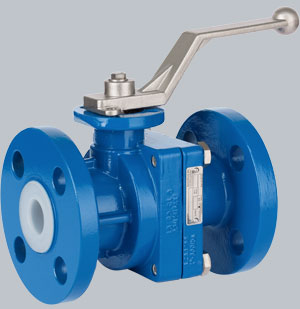

Ball Valves SBV 300 lbs

Fully lined Ball Valves for shut-off and control of corrosive, permeating liquids or gaseous media.

Main features

• Two-piece body, metal-to-metal joint

• Anchored lining with positive locking to body

• Dynamic, maintenance-free shaft sealing acc. to TA-Luft

• One-piece ball/shaft, blow out proof, core of SS Duplex

• Rated breaking point outside of valve

• Bodies with optional flange connections PN40 as well as ANSI Class 150

• Ball options such as V-port, C-port, with pressure relief hole

• ISO top flange for direct mounting of pneum. quarter turn actuators

Version	ANSI
Sizes	1" – 3" full port
Flanges	ASME B16.5 RF ANSI 300lbs
Face to face	ASME B16.10
Body	ASTM A216 WCB
Lining	PFA, PFA-AS (conductive)
Ball	PFA, PFA-AS-encapsulated (conductive)
Operating conditions	(depending on material selection)
Pressure	up to 50 bar
Temperature	-40°C up to +200°C

Body	Stainless steel casting 1.4408	AISI 316 CF-8M
Lining	ETFE
Ball	PVDF, ETFE, SS Duplex solid, Titanium Grade 2, Hastelloy C, V-Port, C-Port
Handlever	Padlock

Detailed specification/options acc. to the data sheet.
